Chapter 2: Evolution of Major Programming Languages
"Much of my work has come from being lazy."
-- John Backus, co-designer of IBM 704 architecture and developer of Fortran

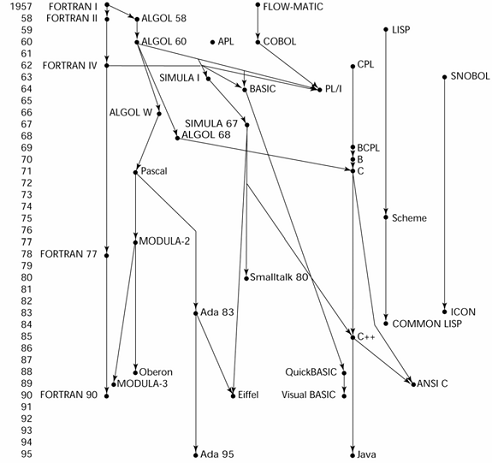

(full chart)
Zuse's Plankalkul (1945)
Never implemented;
Advanced data structures;
floating point, arrays, records;
Invariants
Short Code (1949)
A "pseudocode" developed by Mauchly for BINAC computers;
1) The poor readability and writability of machine code;
2) Machine deficiencies;
- no index registers (required absolute addressing in code)
- no floating point hardware
Speedcoding (1954)
A "pseudocode" developed by John Backus for IBM 701;
Index registers became standard (1955-1964)
Pseudo operations for arithmetic & math functions;
Pseudo operations for conditional & unconditional branching;
Auto-increment registers for array access;
Slower than machine code
FORTRAN 0 (1954) FORmula TRANslation
language specification only - no subroutines;
(brief history of Fortran) &
Fortran history & docs
"Fortran should virtually eliminate coding and debugging errors." p. 2.
"Unfortunately we were hopelessly optimistic in 1954 about the problems of
debugging Fortran programs." p. 168.
"As far as we were aware, we simply made up the language as we went along.
We did not regard language design as a difficult problem, merely a simple
prelude to the real problem: designing a compiler which could produce
efficient programs." p. 168.
"...while it was perhaps natural and inevitable that languages like Fortran
and its successors should have developed out of the concept of the von
Neumann computer as they did, the fact that such languages have dominated
our thinking for over twenty years is unfortunate. It is unfortunate because
their long-standing familiarity will make it hard for us to understand and
adopt new programming styles which one day will offer far greater
intellectual and compututational power." p. 178.
John Backus, "The history of Fortran I, II, and III." ACM SIGPLAN
Notices, 13(8):165-180, August 1978.
FORTRAN I (1956 - 1957)
1st implemented version of Fortran compiler (released 1957) - 18 man years;
Designed for IBM 704 with index registers and floating point hardware;
Environment of development:
Primitive kernel or no kernel; No programming methodology or tools;
Computers were small and unreliable;
Scientific applications and efficiency primary concern;
Impact of environment on design:
No need for dynamic storage (no heap)
Need good array handling and counting loops;
No string handling, decimal arithmetic, or powerful I/O (commercial stuff)
Overview:
Names could have up to six characters;
Post-test counting loop (DO)
Formatted I/O;
User-defined subprograms;
Three-way selection statement ( arithmetic IF - <, >, = )
No data typing statements;
Programs larger than 400 lines rarely compiled correctly, mainly due to
poor reliability of 704;
Code was very fast - quickly became widely used
FORTRAN II (1958)
Independent compilation of subroutines (reduced development time)
LISP (1958) -
LISt Processing language; Designed at MIT by McCarthy (1958)
First functional language
AI applications process data in lists rather than arrays
Symbolic computation rather than numeric
Code + Data has same form
Originally only two data types: atoms and lists
Syntax based on lambda calculus
No need for variables or assignment (as in imperative languages)
Control via recursion and conditional expressions
Still the dominant language for AI
ML, Miranda, and Haskell are related languages
ALGOL 58 (1958)
The 1st step to platform independent language with formalized grammar
in BNF (Backus-Naur form) notation;
Language Close to mathematical notation - good for describing ALGOrithms;
Language development up to now was for specific machines
(Fortran had barely arrived for IBM 70x);
No portable or universal language -- all were machine-dependent;
No easy way to communicate algorithms;
ACM and GAMM met for four days on design (May 27 to June 1, 1958)
Must be translatable to machine code;
Formalized Concept of "type";
Names could be any length;
Arrays could have any number of subscripts;
Parameters were separated by mode (in & out)
Subscripts were placed in brackets;
Compound statements (begin ... end)
Semicolon as a statement separator;
Assignment operator was :=;
if had an else-if clause;
No I/O - would make I/O machine dependent;
IBM initially enthusiastic -- all support dropped by mid 1959 so
eventually ALGOL as a language died
1 9 6 0 -
COBOL (COmmon Business-Oriented Language)
Design Process (late 1959 - )
Names up to 12 characters, with embedded hyphens;
English names for arithmetic operators (no arithmetic expressions)
Verbs the first word in every statement;
Design committee members from computer manufacturers and DoD ;
Design goals:
to work for business applications (based on FLOW-MATIC)
to look like simple English -- easy to use at expense of being powerful;
to broaden the base of computer users;
FORTRAN IV (1960-62)
Explicit type declarations;
Logical selection statement;
Subprogram names could be parameters;
ALGOL 60 (1960)
an effort to design a universal language - portability;
New features:
Block structure (local scope)
Two parameter passing methods;
Subprogram recursion;
Stack-dynamic arrays;
No I/O or string handling;
APL: A Programming Language (1960)
Early dynamic language;
Designed as a hardware description language at IBM by Ken Iverson;
Highly expressive (many operators for scalars and arrays of n-dimensions)
Programs are very difficult to read;
Still in use; minimal changes;
SNOBOL (1962)
Early dynamic language;
Designed as a string manipulation language at Bell Labs;
Powerful operators for string pattern matching;
Slower than alternative languages (no longer used for writing editors)
Still used for certain text processing tasks;
BASIC (1964)
The beginning of timesharing - Free and private access;
Designed at Dartmouth for non-science students - 1st widely used timesharing language ;
User time more important than computer time - Fast turnaround for homework;
Easy to learn and use for non-science students: pleasant and friendly;
Current popular dialect: Visual BASIC
PL/I (1964)
Initially called NPL (New Programming Language) changed to PL/I in 1965;
Designed by IBM and SHARE: Everything for Everybody ;
Computing situation in 1964 (IBM's point of view)
1) Scientific computing IBM 1620 and 7090 computers Fortran;
2) SHARE user group Business computing IBM 1401, 7080 computers COBOL;
;
By 1963 scientific users began to need more elaborate I/O like COBOL and business users began to need floating point and arrays ;
Two kinds of computers, languages, and support staff--too costly;
The solution: Build a new computer to do both (IBM 360)
and design a new language for it ;
PL/I designed in 5 months by 3 members from IBM, 3 members from SHARE;
Initial concept - an extension of Fortran IV;
FORTRAN 66 - First ANSI standard for a high level language ;
SIMULA 67 (1967)
Historical Importance: designed for system simulation ;
Introduced concept of data abstraction;
Designed primarily for system simulation in Norway by Nygaard and Dahl;
Based on ALGOL 60 and SIMULA I;
Primary Contributions:
Co-routines - a kind of subprogram;
Implemented in a structure called a class;
Classes are the basis for data abstraction;
Classes are structures that include both local data and functionality;
ALGOL 68 (1968)
Orthogonal Design;
From ALGOL 60 but not a superset of that language;
Source of several new ideas but language never achieved widespread use;
Design is based on the concept of orthogonality;
A few principle concepts, few combining mechanisms;
Contributions:
User-defined data structures;
Reference types;
Dynamic arrays (called flex arrays)
Comments
PROLOG (1970)
Programming Based on Formal Logic ;
Developed at University of Aix-Marseille, France ;
Non-procedural; declarative rather than imperative;
Can be summarized as being an intelligent database system that uses an ;
inferencing process to infer the truth of given queries;
Highly inefficient, small application areas -- formal language research; AI;
PASCAL (1971)
Developed by Wirth (a member of the ALGOL 68 committee)
Designed for teaching structured programming;
Small, simple, nothing really new;
Largest impact on teaching programming;
From mid-1970s to late 1990s the most widely used language for teaching
C (1972)
Designed for systems programming (at Bell Labs by Dennis Richie)
Evolved primarily from BCLP, B, but also ALGOL 68;
Powerful set of operators, but poor type checking;
Initially spread through UNIX; rapidly grew in popularity;
Many areas of application
ADA (1975 - )
History's Largest Design Effort ;
Huge design effort, hundreds of people, much money, and about eight years;
Strawman requirements (April 1975);
Woodman requirements (August 1975);
Tinman requirements (1976);
Ironman equipments (1977);
Steelman requirements (1978);
Named Ada after Augusta Ada Byron - the first programmer;
Contributions:
Packages - support for data abstraction;
Exception handling - elaborate ;
Generic program units;
Concurrency - through the tasking model
Scheme (1975)
contemporary dialect of Lisp; Developed at MIT in mid 1970s; extensive
static scoping; functions as first-class entities; simple
syntax and small size-educational use;
FORTRAN 77 (1977)
Character string handling/ Logical loop control statement/ IF-THEN-ELSE;
C++ (1980)
Developed at Bell Labs by Stroustrup ;
Combining Imperative and Object-Oriented Programming ;
Evolved from C and SIMULA 67 ;
Facilities for object-oriented programming, taken partially from SIMULA 67;
Provides exception handling;
A large and complex language - supports both procedural and OOP programming;
Rapidly grew in popularity, along with OOP;
ANSI standard approved in November 1997;
Microsoft's version (released with .NET in 2002): Managed C++
delegates, interfaces, no multiple inheritance;
COMMON Lisp (1984)
combines features of several dialects of Lisp into a single language;
large, complex; commercially used - Yahoo interface written in CLisp
Perl (1987)
Developed by Larry Wall at NASA's Jet Propulsion Lab;
Related to ALGOL only through C;
A scripting language;
A script (file) contains instructions to be executed;
Other examples: sh, awk, tcl/tk;
Perl variables are statically typed and implicitly declared;
Three distinctive namespaces, denoted by the first character of a
variables name;
Powerful but somewhat dangerous;
Widely used as a general purpose language
Ada 95 (1988-)
Support for OOP through type derivation;
Better control mechanisms for shared data;
New concurrency features;
More flexible libraries;
Popularity shrinking - DoD no longer requires it and replaced by C++
FORTRAN 90 (1990) -
Modules / Dynamic arrays / Pointers / Recursion / CASE statement ;
Parameter type checking
Java (early 1990s) -
An Object-Oriented Language Developed at Sun; based on C and C++ ;
C/C++ not satisfactory for embedded electronic devices;
Significantly simplified (does not include struct, union, enum, pointer
arithmetic, and half of the assignment coercions of C++);
Supports only OOP - i.e., imperative but non-procedural;
Portable: Java Virtual Machine concept, JIT compilers;
Has references, but not pointers;
Includes support for a form of concurrency;
Libraries for applets, GUIs, database access;
Eliminates unsafe features of C/C++ (see IOCCC) -
Widely used for WWW and embedded in network devices (PDAs, cell phones...) -
Use for other areas increased faster than any other language;
Most recent version of java compiler is 1.7 which is compiler for Java 7
Visual Basic (1991) -
Microsoft's BASIC dialect; Windows; event-driven;
Python (1991) -
An OOP interpreted scripting language;
Type checked but dynamically typed;
Supports CGI and form processing;
Eiffel (1992) -
Related OOP Languages;
Designed by Bertrand Meyer ;
Not directly derived from any other language;
Smaller and simpler than C++, but still has most of the power;
Lacked popularity of C++ because C programmers migrate to C++ ;
PHP (1995) -
PHP: Hypertext Preprocessor;
Used for Web applications (server side) produces HTML code as output;
Delphi (1995) -
Borland;
Pascal plus features to support OOP;
More elegant and safer than C++;
JavaScript (1995) -
Joint venture of Netscape and Sun Microsystems;
Used in web programming (client-side) to create dynamic HTML documents;
Related to Java only through similar syntax;
Ruby (1995) -
Developed and designed by Matsumoto in Japan; open source; dynamic;
Multiparadigm: functional, OO, imperative, interpretive. Designed on
the "Principle of Least Surprise" -- language should behave so as to
minimize surprise by experienced users.
C# (2001)
A C-Based Language for the New Millennium;
Part of the .NET development platform;
Based on C++ , Java, and Delphi;
Provides a language for component-based software development
.NET languages (2001) -
(C#, Visual BASIC.NET, Managed C++, J#.NET, and Jscript.NET) ;
uses Common Type System (CTS), which provides a common class library -
widely used and popular
Markup/Programming Hybrid Languages (2000) -
World Wide Web Consortium (W3C) Standards; eXtensible Markup Language (XML)-
a metamarkup language; eXtensible Stylesheet Language (XSL) - formatting;
eXtensible Stylesheet Language Transformation (XSLT) transforms XML
documents for display; declarative with functional & procedural features
JSP (2005) -
Java Server Pages: a collection of technologies to support dynamic Web
documents; JSPs are compiled into Java Servlets by a JSP compiler. A JSP
compiler may generate a servlet in Java code to be compiled by the Java
compiler or it may generate byte code for the servlet directly. JSPs can
also be interpreted on-the-fly.
F# (2005)
Open Source/Microsoft; a functional version of C that works within .NET
environment.
Swift (2014) -
Developed by Apple for iOS and OS X development; Swift is a multi-paradigm ;
and safer replacement for Objective-C; (wiki)
e v a l u a t i o n
FORTRAN -
Highly optimizing compilers (all versions before 90) -
Types and storage of all variables are fixed before run time;
Dramatically changed forever the way computers are used;
The lingua franca of the computing world for many decades;
ALGOL 60 -
Successes:
First machine-independent language; First language with
formalized grammar (BNF notation);
Standard way to write algorithms for over 20 years;
All subsequent imperative languages are based on it;
Never widely used, especially in U.S.;
REASONS FOR FAILURE:
Lack of I/O and the character set made programs non-portable;
Too flexible--hard to implement;
Entrenchment of Fortran and COBOL;
Lack of support from IBM
COBOL -
Contributions:
First macro facility in a high-level language;
Hierarchical data structures (records) -
Nested selection statements;
Long names (up to 30 characters) with hyphens;
Separated data and code in memory;
First language required by DoD (would have failed without DoD) -
Still the most widely used business applications language;
(1997 - Gartner Group survey - 80%) <==
PL/I: ;
Contributions:
First unit-level concurrency;
First exception handling;
Switch-selectable recursion;
First pointer data type;
First array cross sections;
Downsides:
Many new features were poorly designed;
Too large and too complex;
ALGOL 68 ;
Less usage than ALGOL 60 but source of new ideas;
Had strong influence on all imperative languages (Pascal, C, ;
Modula/Modula 2, Ada, Oberon, C++/Java, Perl) -
Ada;
Competitive design;
Included latest research on software engineering and language design;
First compilers were very difficult; the first usable compiler came ;
nearly five years after the language design was completed;
t e r m i n o l o g y
ANSI C docs
provide a good introduction to programming language terminology.
An invariant is a statement that is always true. Invariants are
used to verify program correctness. For example:
// loop invariant: i <= 10
const int MAX = 10;
int stuff[MAX];
int i = MAX;
while ( i )
stuff[--i] = 0;
In computer architecture, an index register is a processor register
that holds the base;
memory address of a structured variable such as an array. Addresses into
the array can then be stored as offsets from the base address. Index
registers
improve code flexibility and maintainability. Index registers were not
standard in early computers, but became standard in the IBM 704 and after.
An autoincrement register implements an addressing mode in which the
base address is incremented as elements in the array are accessed. ;
This is not a popular design - computers with autoincrementing registers ;
have had trouble recovering from interupts.
Static has multiple meanings, depending
on the language and on the context.
Static scoping means that scoping rules are set during
compilation and do not change during runtime. In dynamic scoping
scoping rules are not set at compilation and may change during code
execution.
// an example of static vs. dynamic scoping;
int x = 0;
int f () { return x; }
int g () { int x = 1; return f() }
Static can also define the storage allocation (lifetime) of a variable
as well as its scoping.
In C, the keyword 'static' defines a variable with
visibility within a compilation
unit and lifetime of program execution. In C++, a static variable or a static
method means that one entity exists for all instantiations of the class.
Static does not mean immutable -- do not confuse 'static' with 'const'.
Do not confuse the two terms with their usage in computer memory. In
this context, static RAM (SRAM) refers to a type of
memory chip that holds its data without external refresh as long as
power is supplied to the circuit. Dynamic RAM (DRAM) chips must be refreshed
several times per second to hold data.
In programming languages dynamic generally
refers to something that occurs
at runtime; i.e., during program execution. For example,
a dynamic language is
characterized by dynamic typing and dynamic storage allocation. Variables
are untyped until code execution. A variable
is bound to a type only when it is assigned a value.
Storage is allocated to a variable when it is assigned a value.
For example, if a user enters a digit
the variable becomes a number. While dynamic typing offers flexibility,
illegal statements based on datatype are not caught until code execution.
Two early dynamic languages are APL (1960) and SNOBOL (1962). Modern dynamic
languages also include facilities for automatic garbage collection -- handling
dynamic memory deallocation without the coder worrying about it (automatic
garbage collection).
The heap is a memory store from which blocks can be allocated and
deallocated during program execution in arbitrary sizes and arbitrary order.
Allocation
and deallocation from the heap is called dynamic memory management.
Reallocation of the heap is called garbage collection.
Dynamic memory has been part of most computer systems since
around 1961, requiring both compiler and
operating system support. Dynamic memory allocation was added
to Fortran 90.
Automatic Memory Allocation refers to memory storage that is
allocated on the runtime stack. Auto-allocation is dynamic.
A scalar is a variable that holds a single entity. Examples are
int x = 5;
float y = 3.4;
char ch = 'a';
A non-scalar (structured) variable holds multiple entities. An example is
an array.
A typeless language is one in which there is
no differentiation among data types. User interfaces for
typeless languages are generally easier to
implement. The original specification for Lisp is an example of a typeless
language. (Lisp is no longer typeless).
A parameter is an object that is passed into a function.
Parameters are specified in a function definition. Parameters can
have a type and a mode. In-mode refers to a parameter whose value
is passed into the function. Out-mode refers to a parameter whose value is
passed out of the function. The argument is the name of the
variable used in the function call; e.g. int n=5; fun(n) // num is an argument
A post-test loop is an iteration statement in which the termination
condition is tested at the bottom of the loop rather than at the top.
The body in a post-test loop is always executed at least once.
An example is the 'do' in C:
do {
num++;
i++;
}
while (i < MAX);
